Fischer - FIS EM 390 S
Fischer - FIS EM 390 S
Fischer - FIS EM 390 S
Fischer - FIS EM 390 S
Chevron Down
Fischer - FIS EM 390 SFischer - FIS EM 390 SFischer - FIS EM 390 SFischer - FIS EM 390 S

The fischer injection mortar FIS EM Plus 390 S is a high-quality epoxy resin mortar for maximum load-bearing capacity in cracked and non-cracked concrete as well as in steel fibre reinforced concrete. Alongside the injection mortar, the injection system consists of reinforcement steel, the approved components anchor rod FIS A and internal threaded anchor RG M I. The anchor rod FIS A can be set with variable anchorage depths. This enables the system to be ideally adjusted to the load to be supported. This optimises the use of materials. The epoxy resin mortar is suitable for fixings in indoor and outdoor areas such as shear connectors for concrete layers, high racks, or heavy-duty steel constructions. The approval of the injection mortar for use in glued laminated or glued solid timber of spruce (Picea abies), fir (Abies alba) or pine (Pinus sylvestris) allows the realisation of high-performance and appealing wood-wood, wood-concrete and wood-steel connections.

Read more Chevron Right

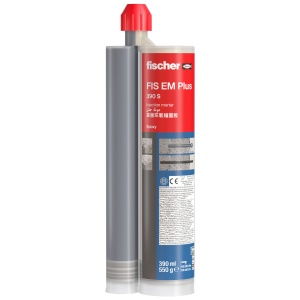

Fischer - FIS EM 390 S Epoxy Resin - Cartridge

£15.71
£18.85
each
Size/Model No. Stock No. Price each Available
Stock		Quantity
390ml. 544155199-32-11
£15.71
£18.85
cat: £15.71
cat: £18.85
6

More Products to Explore

Product Description

The fischer injection mortar FIS EM Plus 390 S is a high-quality epoxy resin mortar for maximum load-bearing capacity in cracked and non-cracked concrete as well as in steel fibre reinforced concrete. Alongside the injection mortar, the injection system consists of reinforcement steel, the approved components anchor rod FIS A and internal threaded anchor RG M I. The anchor rod FIS A can be set with variable anchorage depths. This enables the system to be ideally adjusted to the load to be supported. This optimises the use of materials. The epoxy resin mortar is suitable for fixings in indoor and outdoor areas such as shear connectors for concrete layers, high racks, or heavy-duty steel constructions. The approval of the injection mortar for use in glued laminated or glued solid timber of spruce (Picea abies), fir (Abies alba) or pine (Pinus sylvestris) allows the realisation of high-performance and appealing wood-wood, wood-concrete and wood-steel connections.

Features


Advantages

  • The ETA assessment guarantees a service life of 100 years. The expert report of IEA Stuttgart even confirms a working life up to 120 years and thus underlines the reliability and durability of the FIS EM Plus.
  • The optimised formulation of the epoxy resin mortar FIS EM Plus leads to improved load values in cracked and non-cracked concrete.
  • The mortar can be used for rebar connections from diameter 8 to 40, including seismic applications.
  • With the threaded rod FIS A, the loads to be applied can be designed variably by selecting the anchorage depth.The mortar is approved for diamond drilled and water-filled drillholes as well as seismic applications and thus offers safety under extreme conditions.
  • For practical use on the building site, FIS EM Plus can be processed at low temperatures down to -5°C.

    Specification


    Applications

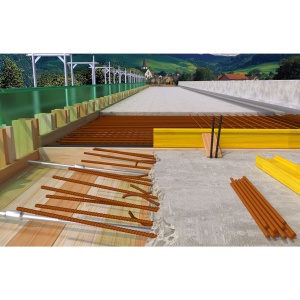

  • Post-installed rebar connections
  • Jointers for concrete layers
  • Rim beam anchorings
  • Seismic applications
  • Anchorings in diamond-drilled or in waterfilled drill holes
  • Heavy steel constructions
  • Silo installations
  • Tall shelving
  • Sound barriers
  • Temporary or removable fixings (with internal threaded anchor RG M I)
  • Anchorings in sealing surfaces according to WRL (Water Ressources Law)

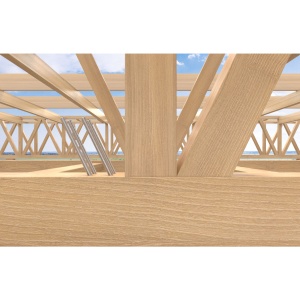

  • Glued anchorages in wood, see approval for gluing in wood

    Building materials

     Approved for anchorings in:

  • Concrete C20/25 to C50/60, cracked and non-cracked
  • steel fibre reinforced concrete with max. fibre content of 80 kg/m³
  • Glued laminated or glued solid timber of spruce (Picea abies), fir (Abies alba) or pine (Pinus sylvestris)

    Also suitable for:

  • Natural stone with dense structure

    You can find detailed information on building materials in the registration document.

    Approvals
  • ETA-23/0842
  • ETA-19/0657
  • ETA-22/0001
  • ETA-17/1056
  • ETA-17/0979
  • DoP No. 0341
  • DoP No. 0367
  • DoP No. 0366
  • ESR-1990
  • Z-74.8-199
  • Z-74.8-211
  • Z-9.1-914
  • Report No MRF 19 26082687/C
  • EPD-DBC-FIW-20230530-CBA1-EN

    Functionality
  • The epoxy mortar FIS EM Plus combined with the FIS A threaded rod, is suitable for pre-positioned and push-through installation and with the internal threaded anchor RG M I for pre-positioned installation.
  • Resin and hardener are stored in two separate chambers and are not mixed and activated until extrusion through the injection capsule in the static mixer.
  • The mortar is injected bubble-free from the drill hole base.
  • The mortar bonds the entire surface of the anchor with the drill hole wall and seals off the drill hole.
  • The anchor is set manually by lightly rotating it until it reaches the drill hole base.
  • During push-through installation, the annular gap between the anchor rod and attachment is filled with FIS EM Plus.
