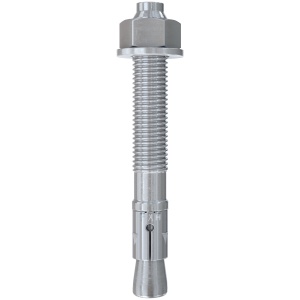

The fischer bolt anchor FXA is the cost-efficient fixing solution for mid and low load performance in non-cracked concrete. The FXA is offered from M8 - M16 in zinc-plated and stainless steel.

Read more Chevron Right

Through Bolt - Standard - Fischer FXA - Galv

£63.26
£75.91
per 100
Size/Model No. Stock No. Price per hundred Available
Stock		Quantity
12/30 x 124 523139204-60-92
£63.26
£75.91
cat: £63.26
cat: £75.91
4 days

More Products to Explore

Product Description

The fischer bolt anchor FXA is the cost-efficient fixing solution for mid and low load performance in non-cracked concrete. The FXA is offered from M8 - M16 in zinc-plated and stainless steel.

Features


Advantages

  • ETA approval Option 7 for non-cracked concrete ensure a high quality standard.
  • The standard anchorage depth of FXA achieves the maximum loadbearing capacities so fewer fixing points and smaller anchor plates are required.
  • The drive-in pin protects the thread from damage and ensures a faster installation and dismantling of the attachment.
  • The full range M8 - M16 in zinc plated and stainless steel allows a wide field of indoor and outdoor applications.
  • Quick and easy installation is possible with the help of the FA-ST II setting tool.

    Specification


    Applications

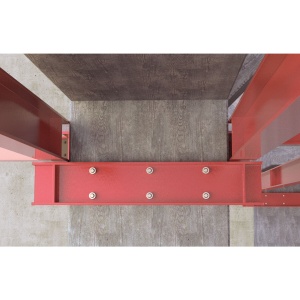

  • Steel constructions
  • Guard rails
  • Consoles
  • Ladders
  • Cable trays

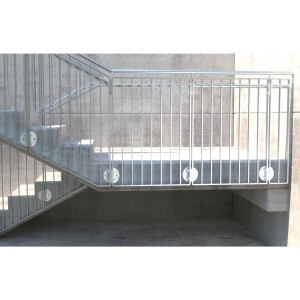

  • Staircases
  • Gates

    Building materials

     Approved for:

  • Concrete C20/25 to C50/60, non-cracked

    You can find detailed information on building materials in the registration document.

    Approvals
  • ETA-13/0772
  • DoP No. 0193

    Functionality
  • The FXA is suitable for pre-positioned and push-through installation.
  • When applying the torque, the cone bolt is pulled into the expansion sleeve and expands it against the drill hole wall.
  • The anchor is set in line with the approval once the preset installation torque is achieved.
  • In the case of series installation, we recommend using the FABS or FA-ST II anchor bolt setting tools.
