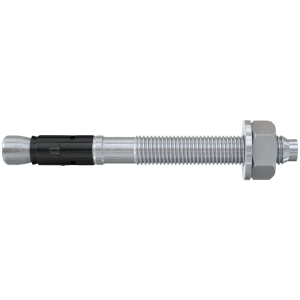

Fischer FAZ II Plus - ZP Through Bolt - Standard

Through Bolt - Standard - Fischer FAZ II Plus - ZP

by Fischer Fixings

_{From £64}^.32

_{From £77}^.18

per 100

Size/Model No.	Stock No.	Price per hundred	Available Stock	Quantity

M6 x 65mm 6/10564572	213-94-91	_£72^.09 _£86^.51 _{cat: £72}^.09 _{cat: £86}^.51	2 days
M6 x 75mm 6/20564573	213-95-09	_£64^.32 _£77^.18 _{cat: £64}^.32 _{cat: £77}^.18	2 days
M8 x 75mm 8/10564574	213-95-17	_£78^.81 _£94^.57 _{cat: £78}^.81 _{cat: £94}^.57	2 days
M8 x 95mm 8/30564575	213-95-33	_£103^.42 _£124^.10 _{cat: £103}^.42 _{cat: £124}^.10	2 days
M8 x 115mm 8/50564576	213-95-41	_£108^.39 _£130^.07 _{cat: £108}^.39 _{cat: £130}^.07	2 days
M8 x 165mm 8/100564577	213-96-57	_£136^.50 _£163^.80 _{cat: £136}^.50 _{cat: £163}^.80	2 days
M8 x 225mm 8/160564578	213-96-65	_£564^.60 _£677^.52 _{cat: £564}^.60 _{cat: £677}^.52	2 days
M10 x 95mm 10/10564579	213-96-73	_£114^.40 _£137^.28 _{cat: £114}^.40 _{cat: £137}^.28	2 days
M10 x 105mm 10/20564580	213-96-81	_£146^.25 _£175^.50 _{cat: £146}^.25 _{cat: £175}^.50	2 days
M10 x 115mm 10/30564581	213-80-71	_£135^.07 _£162^.08 _{cat: £135}^.07 _{cat: £162}^.08	2 days
M10 x 135mm 10/50564582	213-96-99	_£146^.98 _£176^.38 _{cat: £146}^.98 _{cat: £176}^.38	2 days
M10 x 165mm 10/80564583	213-97-49	_£198^.17 _£237^.80 _{cat: £198}^.17 _{cat: £237}^.80	2 days
M10 x 185mm 10/100564584	213-97-56	_£175^.99 _£211^.19 _{cat: £175}^.99 _{cat: £211}^.19	2 days
M10 x 245mm 10/160564585	213-97-64	_£975^.49 _£1,170^.59 _{cat: £975}^.49 _{cat: £1170}^.59	2 days
M12 x 110mm 12/10564586	213-97-72	_£148^.69 _£178^.43 _{cat: £148}^.69 _{cat: £178}^.43	2 days
M12 x 120mm 12/20564587	213-80-89	_£214^.74 _£257^.69 _{cat: £214}^.74 _{cat: £257}^.69	2 days
M12 x 130mm 12/30564588	213-85-92	_£170^.38 _£204^.46 _{cat: £170}^.38 _{cat: £204}^.46	2 days
M12 x 150mm 12/50564589	213-97-80	_£185^.17 _£222^.20 _{cat: £185}^.17 _{cat: £222}^.20	2 days
M12 x 180mm 12/80564590	213-98-14	_£232^.94 _£279^.53 _{cat: £232}^.94 _{cat: £279}^.53	2 days
M12 x 200mm 12/100564591	213-98-22	_£246^.11 _£295^.33 _{cat: £246}^.11 _{cat: £295}^.33	2 days
M12 x 260mm 12/160564592	213-98-30	_£306^.96 _£368^.35 _{cat: £306}^.96 _{cat: £368}^.35	2 days

Product Description

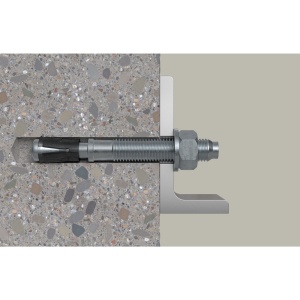

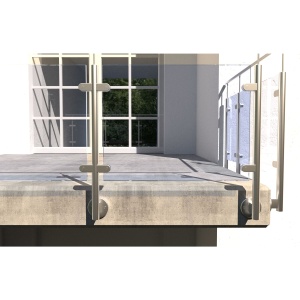

The fischer bolt anchor FAZ II Plus is the steel anchor for the highest demands with high tensile strengths and a wide range of applications. Heavy loads can be secured in cracked concrete using the steel anchor. The FAZ II Plus is easier and faster to set due to the elimination of drill hole cleaning (M8-M24). The tried-and-tested expansion clip safely introduces the loads into the concrete and enables an immediately loadable, high load-bearing capacity. For example, the steel anchor is ideal for the anchoring of railings, cable trays, and consoles.

Features

Advantages

Quick and easier assembly without the need for drill hole cleaning (M8-M24).

Numerous approval certificates for different substrate materials (concrete C12/15-C80/90, steel fiber concrete, solid sand-lime brick) increase the number of applications and fields of use.

With the new assessment (ETA), the tensile strengths increase decisively. As a result, fewer fixing points and anchors are required.

The new ETA confirms the use of the FAZ II Plus for dynamic loads for diameters M16-M24.

The fast installation process of the FAZ II Plus provides an efficient fixing solution for dynamic applications with low load cycles (M16-24) with an immediately loadable fixing point.

The ETA evaluation, together with other test reports (RWS, ZTV, ETK), ensures high loads in case of fire.

The FAZ II Plus allows the absorption of high seismic loads of performance category C1 and C2 for diameters M10-M24 with and without the use of the filling disc FFD at installation.
