Product Description The fischer high-performance mortar FIS V Plus is the universal all-rounder for the highest requirements. The styrene-free vinyl ester hybrid mortar with its numerous fixing elements is approved for fixations in cracked and non-cracked concrete as well as in masonry. However, the injection mortar is also used with the approved system components for rebar connections, the fischer remedial wall tie VBS 8, the fischer weather facing wall tie FWS II, and the stand-off installation system TherMax. The variant FIS VS Plus Low Speed enables an extended processing time at higher processing temperatures or a greater drill hole depth. The shorter hardening time of the variant FIS VW Plus High Speed enables swift work progress even at low temperatures.

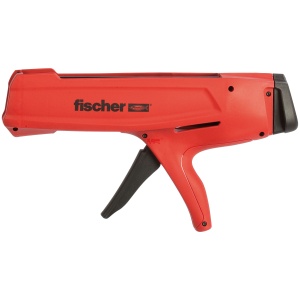

The fischer dispenser FIS DM S is suitable for quick, fatigue-free dispensing of fischer injection cartridges up to 390 ml.
Features Advantages - Resin
The FIS V Plus injection mortar has numerous system approvals, such as in cracked and non-cracked concrete, masonry and for special applications.
The ETA assessment for a service life of 100 years offers permanent safety for all applications.
The approved use in water-filled drill holes enables a wide range of applications, even under harsh environmental conditions.
FIS VW Plus High Speed has a significantly shorter hardening time than FIS V Plus, which ensures swift work progress even at low temperatures.
The FIS VS Plus Low Speed has an extended processing time that prevents the premature hardening of the mortar at higher temperatures. It is ideally suited to large drill hole depths.
The extensive range of accessories is ideally suited to the FIS V Plus injection mortar family, increases the great flexibility of the system and thus allows for a broad range of applications.
Advantages - Gun
The 3-fold push rod distributes the extrusion forces equal over the cartridge and prevents the cartridge from tearing up.
The robust glass fibre reinforced plastic housing increases the breaking strength of the dispenser and offers a long service life.
The ergonomic design of the FIS DM S ensures a good balance and allows fatigue-free working.Specification Applications - Resin
Steelwork constructions
Timber constructions
Guard rails
Façades
Staircases
Steel brackets
Machines
Masts
Awnings
Canopies
Gates
Consoles
Pipelines
Gratings
Satellite antennasBuilding materials
Approved for anchorings in: Concrete C20/25 to C50/60, cracked and non-cracked
Hollow blocks made from lightweight concrete
Hollow blocks made from concrete
Vertically perforated brick
Perforated sand-lime brick
Solid sand-lime brick
Aerated concrete
Solid brick Rebar connections
Remedial wall tie VBS 8
Weather facing reconstruction system FWS II
Stand-off installation TherMaxApprovals
ETA-20/0603
ETA-20/0728
ETA-20/0729
DoP No. 0231
DoP No. 0331
DoP No. 0381
ESR-2786
20046/15515
22044-enshortFunctionality
FIS V Plus is a 2-component injection mortar based on a vinyl ester hybrid concept.
Resin and hardener are stored in two separate chambers and are not mixed and activated until extrusion through the static mixer.
The mortar is extruded bubble free from the drill hole base.
The mortar bonds the entire surface of the anchor with the drill hole wall and seals the drill hole.
The injection cartridges are quick and easy to use with the fischer dispensers.
Partially used cartridges can be reused by changing the static mixer.Contents
20 x Cartridge 360 ml
40 x Static mixer FIS MR PlusApplications - Gun
Shuttle cartridges with 345, 360 and 390 ml content
Cartridges with 150 ml content
Multibond cartridges with 300 ml content
Standard silicone cartridgesFunctionality
The cartridges are placed into the dispenser and are dispensed by operating the handle.
