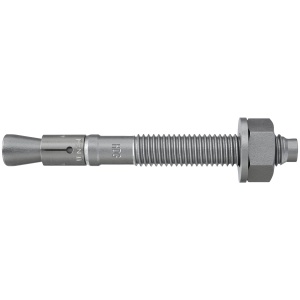

The Fischer bolt anchor FBN II is a steel anchor for cost-effective fixings in non-cracked concrete. Due to the long thread and the two anchorage depths, the Fischer bolt anchor FBN II can be used in a particularly flexible manner. The bolt anchor is also suitable for stand-off installation as well as pre-positioned and in push-through installation. The stainless steel version of the bolt anchor is suitable for fixing facade sub-structures, consoles, and ladders in external areas.

Read more Chevron Right

Fischer bolt anchor FBN II 12/10 hot-dip galvanised

£65.25
£78.30
per 100
Size/Model No. Stock No. Price per hundred Available
Stock		Quantity
12/10 65mm507589207-67-92
£65.25
£78.30
cat: £65.25
cat: £78.30
4 days

More Products to Explore

Product Description

The Fischer bolt anchor FBN II is a steel anchor for cost-effective fixings in non-cracked concrete. Due to the long thread and the two anchorage depths, the Fischer bolt anchor FBN II can be used in a particularly flexible manner. The bolt anchor is also suitable for stand-off installation as well as pre-positioned and in push-through installation. The stainless steel version of the bolt anchor is suitable for fixing facade sub-structures, consoles, and ladders in external areas.

Features


  • With assessment document (ETA) the hot dipped galvanised steel version is covered for external use with variable working life depending on environment and corrosion conditions.
  • The FBN II achieves maximum load-bearing capacity with standard anchorage depth. This means: fewer fixing points and smaller anchor plates.
  • If the reduced anchorage depth is used, then this lowers the drill hole depth and simplifies installation.
  • Component tolerances are balanced out with the long thread. In addition, FBN II is also suitable for stand-off installations. This increases flexibility.
  • Simple assembly due to few taps and minimal slippage.

    Advantages

  • The standard anchorage depth achieves the maximum load-bearing capacities. This means that fewer fixing points and smaller anchor plates are required.
  • The reduced anchorage depth reduces the drill hole depth. This minimises the amount of time needed for installation whilst increasing flexibility.
  • The first bolt anchor with variable working life covers the usage of bolt anchors in wet conditions and outdoor areas.
  • The long thread balances component tolerances and stand-off installations, and thus increases flexibility.
  • Fewer hammer blows and the minimal torque slippage allow for a noticeably simpler assembly.
  • The drive-in pin protects the threaded screw from damage, and as such ensures a faster installation and dismantling of the fixture.

    Specification


    Applications

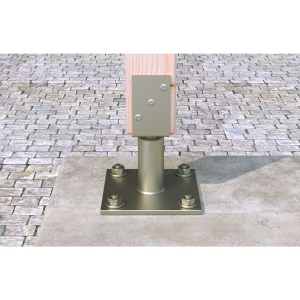

  • Steel constructions
  • Guard rails
  • Consoles

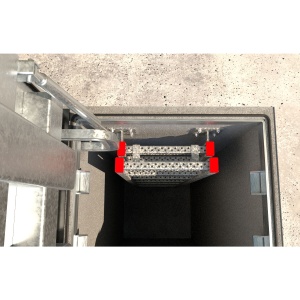

  • Ladders
  • Machines
  • Gates
  • Facades

    Building materials

    Approved for:
  • Concrete C20/25 to C50/60, non-cracked
    Also suitable for:
  • Concrete C12/15
  • Natural stone with dense structure
    You can find detailed information on building materials in the registration document.

    Approvals

    ETA-07/0211 ETA-18/0101 DoP No. 0098 DoP No. 0268

    Functionality

  • The FBN II is suitable for pre-positioned and push-through installation; also suitable for stand-off installation under certain conditions.
  • Prior to installation, place the hexagon nut in the optimal position (the drive-in pin projects by approx. 3 mm out of the hexagon nut).

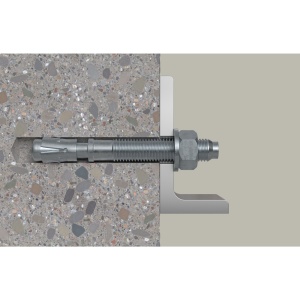

  • When applying the torque, the cone bolt is pulled into the expansion clip and expands it against the drill hole wall.
  • The head embossing offers a simple control of the anchoring.
  • In the case of series installation, we recommend using the FABS bolt anchor setting tool.
